Post by 1dave on Dec 12, 2021 14:15:53 GMT -5
www.geologyin.com/2016/10/earthquakes-make-gold-veins-in-instant.html
Earthquakes, edu, Gold, Mining 2:21 PM

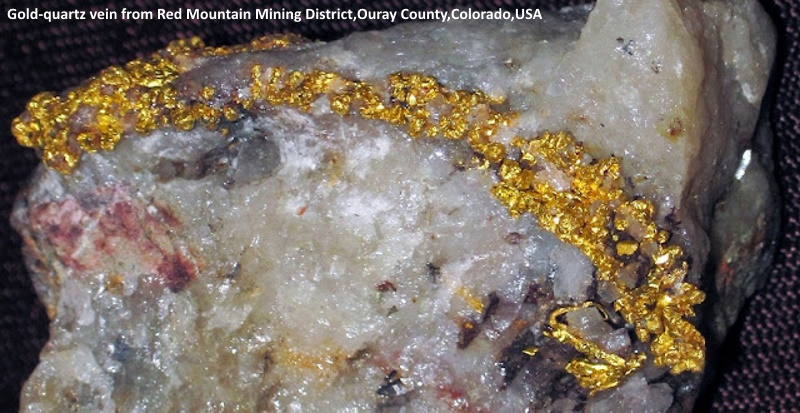

Gold-quartz vein from Red Mountain Mining District,Ouray County,Colorado,USA
Pressure changes cause precious metal to deposit each time the crust moves.
Scientists have long known that veins of gold are formed by mineral deposition from hot fluids flowing through cracks deep in Earth’s crust. But a study published in Nature Geoscience1 has found that the process can occur almost instantaneously — possibly within a few tenths of a second.
The process takes place along ‘fault jogs’ — sideways zigzag cracks that connect the main fault lines in rock, says first author Dion Weatherley, a seismologist at the University of Queensland in Brisbane, Australia.
When an earthquake hits, the sides of the main fault lines slip along the direction of the fault, rubbing against each other. But the fault jogs simply open up. Weatherley and his co-author, geochemist Richard Henley at the Australian National University in Canberra, wondered what happens to fluids circulating through these fault jogs at the time of the earthquake.
What their calculations revealed was stunning: a rapid depressurization that sees the normal high-pressure conditions deep within Earth drop to pressures close to those we experience at the surface.
For example, a magnitude-4 earthquake at a depth of 11 kilometres would cause the pressure in a suddenly opening fault jog to drop from 290 megapascals (MPa) to 0.2 MPa. (By comparison, air pressure at sea level is 0.1 MPa.) “So you’re looking at a 1,000-fold reduction in pressure,” Weatherley says.
Flash in the pan
When mineral-laden water at around 390 °C is subjected to that kind of pressure drop, Weatherley says, the liquid rapidly vaporizes and the minerals in the now-supersaturated water crystallize almost instantly — a process that engineers call flash vaporization or flash deposition. The effect, he says, “is sufficiently large that quartz and any of its associated minerals and metals will fall out of solution”.
Eventually, more fluid percolates out of the surrounding rocks into the gap, restoring the initial pressure. But that doesn’t occur immediately, and so in the interim a single earthquake can produce an instant (albeit tiny) gold vein.
Big earthquakes will produce bigger pressure drops, but for gold-vein formation, that seems to be overkill. More interesting, Weatherley and Henley found, is that even small earthquakes produce surprisingly big pressure drops along fault jogs.
“We went all the way to magnitude –2,” Weatherley says — an earthquake so small, he adds, that it involves a slip of only about 130 micrometres along a mere 90 centimetres of the fault zone. “You still get a pressure drop of 50%,” he notes.
That, Weatherley adds, might be one of the reasons that the rocks in gold-bearing quartz deposits are often marbled with a spider web of tiny gold veins. “You [can] have thousands to hundreds of thousands of small earthquakes per year in a single fault system,” he says. “Over the course of hundreds of thousands of years, you have the potential to precipitate very large quantities of gold. Small bits add up.”
Weatherley says that prospectors might be able to use remote sensing techniques to find new gold deposits in deeply buried rocks in which fault jogs are common. “Fault systems with lots of jogs can be places where gold can be distributed,” he explains.
But Taka’aki Taira, a seismologist at the University of California, Berkeley, thinks that the finding might have even more scientific value. That’s because, in addition to showing how quartz deposits might form in fault jogs, the study reveals how fluid pressure in the jogs rebounds to its original level — something that could affect how much the ground moves after the initial earthquake.
“As far as I know, we do not yet incorporate fluid-pressure variations into estimates of aftershock probabilities,” Taira says. “Integrating this could improve earthquake forecasting.”
The study was published in the journal Nature.
Earthquakes Make Gold Veins in an Instant
Earthquakes, edu, Gold, Mining 2:21 PM
Gold-quartz vein from Red Mountain Mining District,Ouray County,Colorado,USA
Pressure changes cause precious metal to deposit each time the crust moves.
Scientists have long known that veins of gold are formed by mineral deposition from hot fluids flowing through cracks deep in Earth’s crust. But a study published in Nature Geoscience1 has found that the process can occur almost instantaneously — possibly within a few tenths of a second.
The process takes place along ‘fault jogs’ — sideways zigzag cracks that connect the main fault lines in rock, says first author Dion Weatherley, a seismologist at the University of Queensland in Brisbane, Australia.
When an earthquake hits, the sides of the main fault lines slip along the direction of the fault, rubbing against each other. But the fault jogs simply open up. Weatherley and his co-author, geochemist Richard Henley at the Australian National University in Canberra, wondered what happens to fluids circulating through these fault jogs at the time of the earthquake.
What their calculations revealed was stunning: a rapid depressurization that sees the normal high-pressure conditions deep within Earth drop to pressures close to those we experience at the surface.
For example, a magnitude-4 earthquake at a depth of 11 kilometres would cause the pressure in a suddenly opening fault jog to drop from 290 megapascals (MPa) to 0.2 MPa. (By comparison, air pressure at sea level is 0.1 MPa.) “So you’re looking at a 1,000-fold reduction in pressure,” Weatherley says.
Flash in the pan
When mineral-laden water at around 390 °C is subjected to that kind of pressure drop, Weatherley says, the liquid rapidly vaporizes and the minerals in the now-supersaturated water crystallize almost instantly — a process that engineers call flash vaporization or flash deposition. The effect, he says, “is sufficiently large that quartz and any of its associated minerals and metals will fall out of solution”.
Eventually, more fluid percolates out of the surrounding rocks into the gap, restoring the initial pressure. But that doesn’t occur immediately, and so in the interim a single earthquake can produce an instant (albeit tiny) gold vein.
Big earthquakes will produce bigger pressure drops, but for gold-vein formation, that seems to be overkill. More interesting, Weatherley and Henley found, is that even small earthquakes produce surprisingly big pressure drops along fault jogs.
“We went all the way to magnitude –2,” Weatherley says — an earthquake so small, he adds, that it involves a slip of only about 130 micrometres along a mere 90 centimetres of the fault zone. “You still get a pressure drop of 50%,” he notes.
That, Weatherley adds, might be one of the reasons that the rocks in gold-bearing quartz deposits are often marbled with a spider web of tiny gold veins. “You [can] have thousands to hundreds of thousands of small earthquakes per year in a single fault system,” he says. “Over the course of hundreds of thousands of years, you have the potential to precipitate very large quantities of gold. Small bits add up.”
Weatherley says that prospectors might be able to use remote sensing techniques to find new gold deposits in deeply buried rocks in which fault jogs are common. “Fault systems with lots of jogs can be places where gold can be distributed,” he explains.
But Taka’aki Taira, a seismologist at the University of California, Berkeley, thinks that the finding might have even more scientific value. That’s because, in addition to showing how quartz deposits might form in fault jogs, the study reveals how fluid pressure in the jogs rebounds to its original level — something that could affect how much the ground moves after the initial earthquake.
“As far as I know, we do not yet incorporate fluid-pressure variations into estimates of aftershock probabilities,” Taira says. “Integrating this could improve earthquake forecasting.”
The study was published in the journal Nature.
Volcanoes do not make rotten quartz. That is made by earthquakes!
