Hello, everyone!

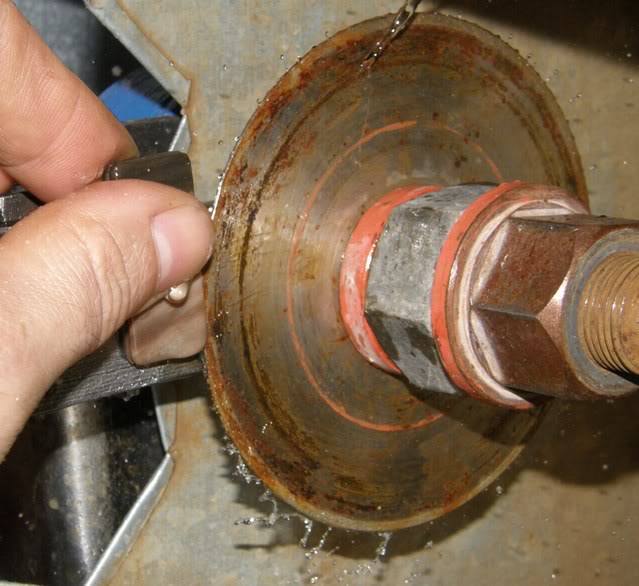

I used to cut the grooves for the groove wraps by hand, using my cabbing machine and a small, thin diamond blade.

These days I decided to do something to ease my work and here is what I've done (the not-painted pieces are the components of the groove cutting device):

I posted this device and some more pics in the wire wrapping area, so if you are interested please also look here

Thank you for looking,
Adrian

Last Edit: Aug 28, 2022 11:08:24 GMT -5 by Tommy: Admin Edit: restored photos damaged by photobucket

Rocks choose their owners, but they allow us the joy of believing to the contrary.

johnjsgems gets rocks for Christmas Member since August 2007 Posts: 6,959	Groove Cut Device Jan 20, 2009 10:07:45 GMT -5 Quote Select Post Deselect Post Link to Post Member Give Gift Back to Top Post by johnjsgems on Jan 20, 2009 10:07:45 GMT -5 You never cease to amaze me Adrian. As a retired mechanic I can take apart and fix just about anything. I have a lot of respect for people that can visualize and create solutions like you do.
	John at JS Gems www.jsgemslapidary.com

Woodyrock
driving up their electric bill

Smile!

Member since January 2008
Posts: 2,719

Groove Cut Device Jan 20, 2009 18:25:13 GMT -5

Quote

Post by Woodyrock on Jan 20, 2009 18:25:13 GMT -5

Adrian:
Great work, I really like nice clean, simple engineering solutions that are also cleanly executed. Your solutions to equipment are what was seen here in North America forty years ago in this hobby. I am not saying that you are out of date by any means. It is just so refreshing to see work like this. Please keep showing us more.
Woody

rocklicker driving up their electric bill Member since January 2006 Posts: 2,586	Groove Cut Device Jan 20, 2009 19:12:35 GMT -5 Quote Select Post Deselect Post Link to Post Member Give Gift Back to Top Post by rocklicker on Jan 20, 2009 19:12:35 GMT -5 Nice job Adrian! Simple and effective. Steve

texaswoodie gets rocks for Christmas Texas Ghost Wood Member since January 2007 Posts: 6,769	Groove Cut Device Jan 20, 2009 19:26:53 GMT -5 Quote Select Post Deselect Post Link to Post Member Give Gift Back to Top Post by texaswoodie on Jan 20, 2009 19:26:53 GMT -5 The inventor extraordinaire strikes again! Curt
